RADIO & COMMUNICATION SYSTEM (SOLD SEPARATELY)

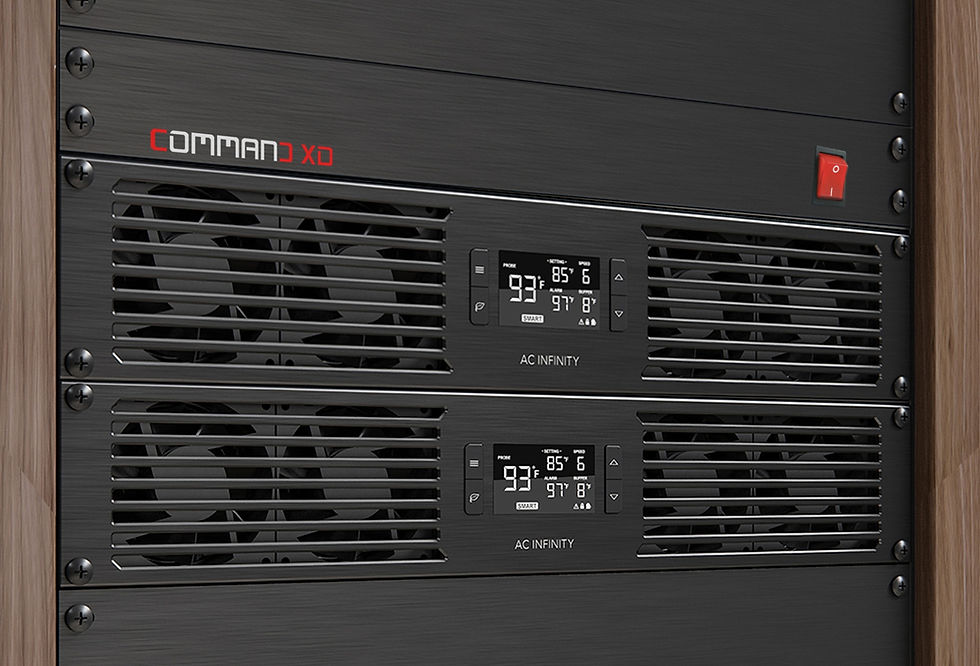

COMMAND XD builds off of the universality of other Desert Rotor GCS. The RF Expansion Bay gives users the ability to cycle between up to six different radio systems. Added USB hubs and Ethernet switches give users the ability to add any extra needed datalinks or COM systems. Easily switch between vastly different unmanned configurations for your operations.

Silvus StreamCaster Digital Radios-

Silvus StreamCaster radios are known for their advanced MIMO (Multiple-Input, Multiple-Output) capabilities, providing robust, long-range communication solutions ideal for unmanned systems in challenging environments. These radios are designed to support dynamic mesh networks, making them highly adaptable for operations involving multiple nodes or moving vehicles.

StreamCaster 4200:

The SC4200 comes in two variants: the 4W model, which can be mounted and powered internally within Desert Rotor Ground Control Stations, and the more powerful 10W model, which requires external power. Both versions operate across a frequency range of 400 MHz to 6 GHz, delivering high-bandwidth communication in diverse conditions.

• Frequency Range: 400 MHz – 6 GHz

• Transmission Power: 4W (internal) or 10W (external)

• Bandwidth: Supports data rates up to 100+ Mbps

• Mesh Networking: Dynamic, self-healing mesh networking capability, ideal for maintaining communications in environments with obstacles or interference.

• Use Cases: Suitable for medium to long-range operations, including ground control, aerial data transmission, and multi-node networks.

StreamCaster 4400:
The SC4400 is a high-performance 4×4 MIMO radio offering increased bandwidth and range, designed for environments where robust, real-time video and data transmission are critical. This model operates in frequency bands from 1.4 GHz to 6 GHz and requires external power due to its high transmission output of up to 10W.

• Frequency Range: 1.4 GHz – 6 GHz

• Transmission Power: Up to 10W (external)

• Bandwidth: Capable of supporting data rates exceeding 100+ Mbps

• Mesh Networking: Multi-node mesh networking with advanced self-healing properties ensures reliable connectivity even in complex environments.

• Use Cases: Ideal for long-range operations, real-time HD video streaming, and large-scale multi-node deployments.

Persistent Systems MPU5-

The MPU5 by Persistent Systems is a cutting-edge mobile ad hoc networking (MANET) radio that provides reliable and secure communication for unmanned systems, even in the most complex environments. It operates on an advanced waveform and allows multiple devices to communicate seamlessly in a dynamic mesh network, maintaining connectivity without the need for fixed infrastructure. Designed for unmanned platforms, the MPU5 excels in delivering high-throughput, low-latency communication for both data and video, making it a key component in any mission-critical operation.

• Frequency Range: 225 MHz – 6 GHz

• Transmission Power: Available in 1W, 2W, and 10W configurations, the higher power variants provide extended range while the lower power versions are ideal for conserving energy in smaller setups.

• Bandwidth: Capable of data rates up to 100 Mbps, allowing for seamless streaming of HD video and large data files.

• Mesh Networking: The MPU5’s Wave Relay® MANET technology enables dynamic, self-healing, peer-to-peer communication between nodes without the need for a central hub. This ensures continuous network connectivity, even when nodes are in motion or obstructed.

• Use Cases: The MPU5 is ideal for both ground-based and airborne unmanned systems, delivering stable communication for operations requiring real-time video transmission, data sharing, and command/control functionality.

• ​

Wave Relay is a registered trademark of Persistent Systems, LLC. Use of this trademark by Desert Rotor is for identification purposes only and does not imply an endorsement from the trademark owner.

Doodle Labs Embedded Smart Radio-

The Doodle Labs Embedded Smart Radio is an ultra-compact, high-performance wireless communication module designed for integration into unmanned systems and industrial IoT applications. Built with state-of-the-art technology, this radio provides long-range, secure, and reliable communication even in challenging environments. The Embedded Smart Radio is ideal for UAVs, robotics, and other unmanned platforms where small size and high functionality are crucial.

• Frequency Range: Available in multiple frequency bands, including 900 MHz, 1.4 GHz, 2.4 GHz, and 5.8 GHz, allowing compatibility with different regional regulations and use cases.

• Transmission Power: Configurable up to 1W, providing an optimal balance between range and power consumption for embedded systems.

• Data Rate: Capable of data rates up to 100 Mbps, ensuring smooth and consistent transmission of video and telemetry data.

• Mesh Networking: Equipped with Doodle Labs’ proprietary Mesh Rider® technology, the Embedded Smart Radio can automatically establish mesh networks, enabling nodes to dynamically connect and communicate without the need for fixed infrastructure.

• Size & Weight: Compact and lightweight, it’s perfect for integration into UAVs, robots, and other compact platforms with minimal space and weight capacity.

Doodle Labs Wearable Radio-

The Doodle Labs Wearable Radio is a versatile, high-performance communication solution designed for personnel in field operations who require constant and reliable connectivity. Built to be lightweight, durable, and easy to wear, this radio is optimized for use in dynamic environments, enabling soldiers, ground operators, and field technicians to maintain secure communication links across long distances.

• Frequency Range: Available in several bands, including 1.4 GHz, 2.4 GHz, and 5.8 GHz, allowing for flexible operation depending on the region and mission requirements.

• Transmission Power: Capable of up to 5W of transmission power, providing extended range for ground-based communication in challenging terrains and complex environments.

• Mesh Networking: Equipped with Doodle Labs’ Mesh Rider® technology, allowing for seamless peer-to-peer communication in dynamic, mobile environments.

• Durability: Engineered for tough environments, the Wearable Radio is shockproof, weatherproof, and dust-proof, ensuring reliable performance in the field.
